The Pattern Matching rule validates whether data values in a specified column match one or more defined regular expression patterns.
This rule is commonly used to:
- Validate standard formats such as emails, phone numbers, or codes
- Enforce consistent data entry formats
- Verify compliance with business rules for field patterns
Example Usage:
- Check that all phone numbers follow international or US formats
- Ensure email addresses are valid and properly structured
- Validate password or ID formats against custom regex patterns
Configuration Fields
Rule-Specific Configuration
| Field Name | Description | Required | Data Type / Options |
|---|
| Pattern | Regular expressions to validate against | Yes | Array of Strings (String[]) |
Success Criteria Configuration
This section defines how the rule’s outcome is measured against expected thresholds.
| Field Name | Description | Required | Options / Format |
|---|
| Operator | Comparison operation for the result count | Yes | GreaterThan, LessThan, EqualTo, Between |
| Threshold Value | Value for comparison (single value for most operators) | Conditional | Number |
| Threshold Min | Minimum value (for Between operator) | Conditional | Number |
| Threshold Max | Maximum value (for Between operator) | Conditional | Number |
| Is Percentage | Whether the threshold represents a percentage or count | No | true / false (default: false) |
| Allow Nulls | Should null values be treated as valid | No | true / false (default: false) |
| Check For Match | When false, validates for negation of the condition | No | true / false (default: true) |
Sample Configurations

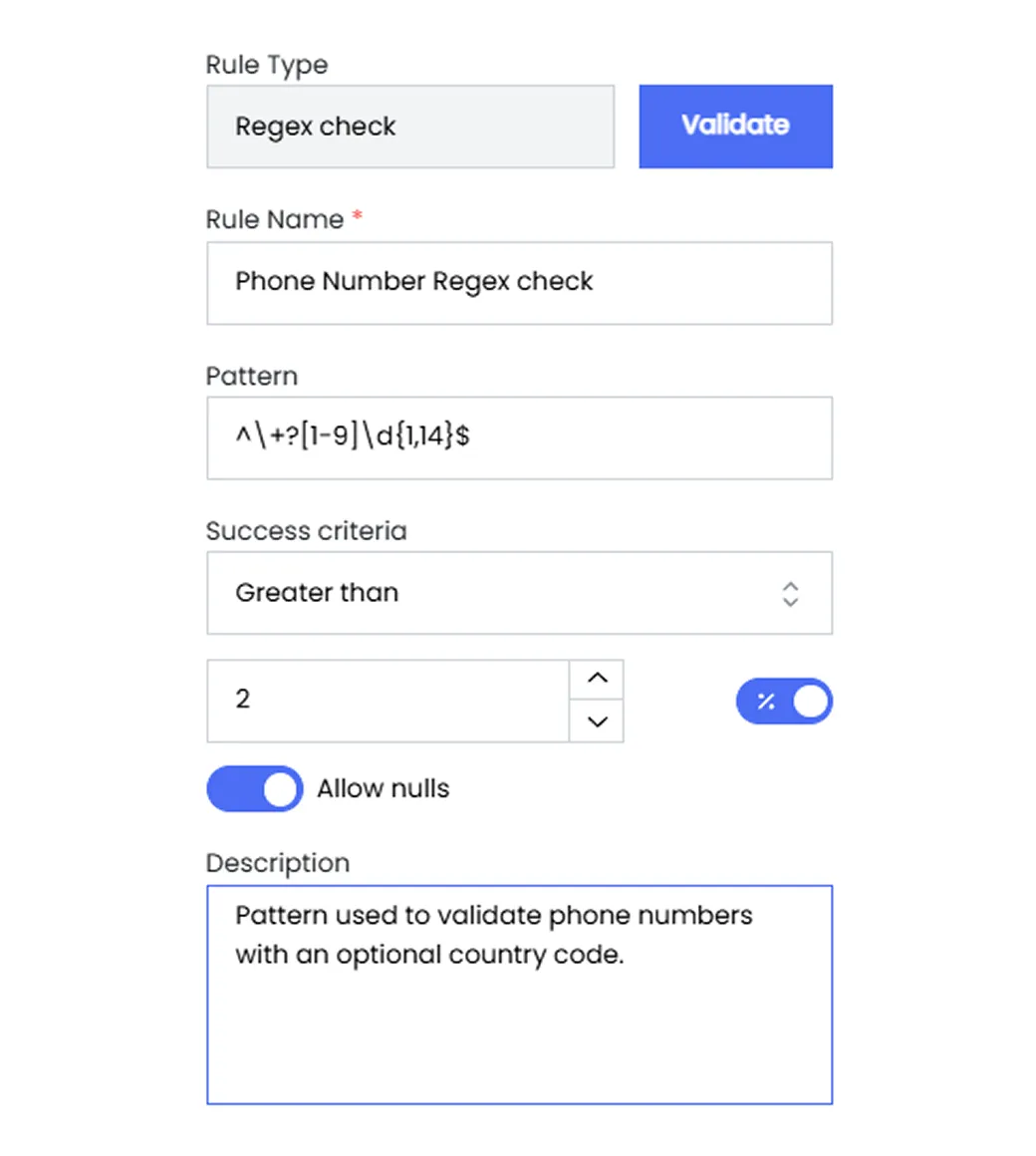

Example 1: Phone Number Pattern Validation
| Configuration Field | Value |
|---|
| Column | Phone Number |
| Patterns | ^\+\d{1,3} \d{2,4} \d{4} \d{4}$,
^\(\d{3}\) \d{3}-\d{4}$,
^\d{3}-\d{3}-\d{4}$ |
| Operator | GreaterThan |
| Threshold Value | 3 |
| Is Percentage | false |
| Allow Nulls | true |
| Check For Match | true |
Explanation:
Ensures that phone numbers match either international or US formats. At least 3 matches are required for the rule to pass. Null values are allowed.
Example 2: Email Address Pattern Validation
| Configuration Field | Value |
|---|
| Column | Email |
| Patterns | ^[a-zA-Z0-9._%+-]+@[a-zA-Z0-9.-]+\.[a-zA-Z]{2,}$ |
| Operator | EqualTo |
| Threshold Value | 3 |
| Is Percentage | false |
| Allow Nulls | false |
| Check For Match | true |
Explanation:
Validates that email addresses follow a standard pattern and that at least 3 records must match. Nulls are treated as invalid.
Sample Output
| Column Name | Rule Name | Success Count | Failure Count | Null Count | Within Threshold |
|---|
| Phone Number | Pattern Matching | 4 | 1 | 0 | Yes |
| Email | Pattern Matching | 3 | 1 | 1 | Yes |
