String Length Validation

The String Length Validation rule ensures string values adhere to defined length constraints.
This rule is commonly used to:

• Validate fixed-length identifiers like phone numbers or country codes
• Enforce minimum/maximum length requirements for address fields, codes, etc.
• Ensure consistent data entry standards

Example Usage:

• Verify all country codes are exactly 2 characters long (like “IN”, “US”)
• Ensure phone numbers are between 10-15 digits after trimming
• Validate access tokens have a minimum of 32 characters

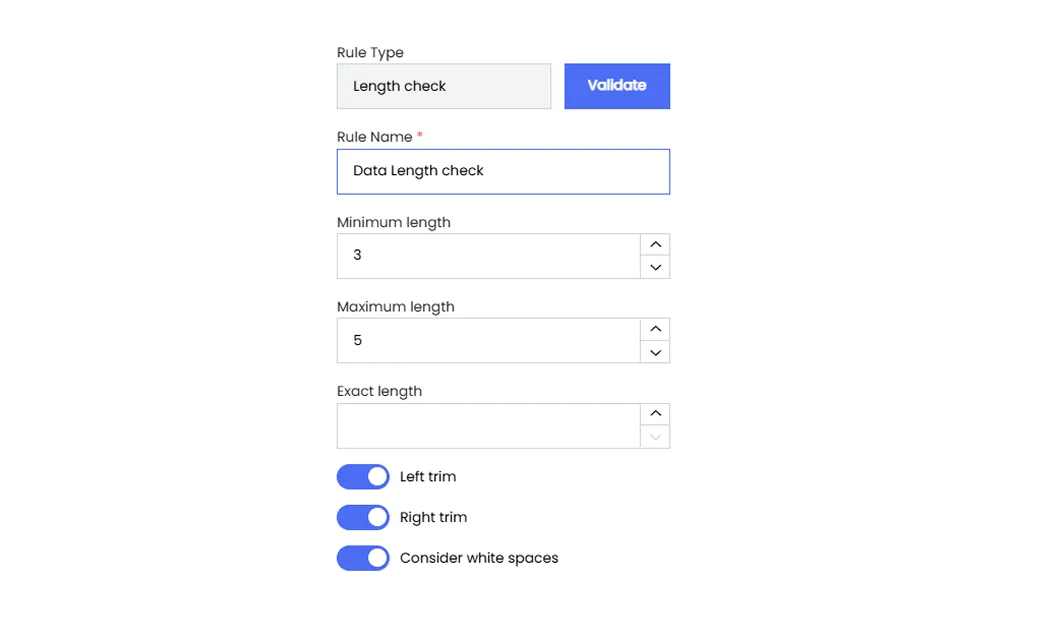

Configuration Fields

Rule-Specific Configuration

Field Name	Description	Required	Data Type / Options
Minimum Length	Minimum allowed length	No	Integer
Maximum Length	Maximum allowed length	No	Integer
Exact Length	Required exact length	No	Integer
Left Trim	Trim whitespace from start of string	No	true / false (default: true)
Right Trim	Trim whitespace from end of string	No	true / false (default: true)
Consider Whitespace	Include whitespace characters in length calculation	No	true / false (default: false)

---

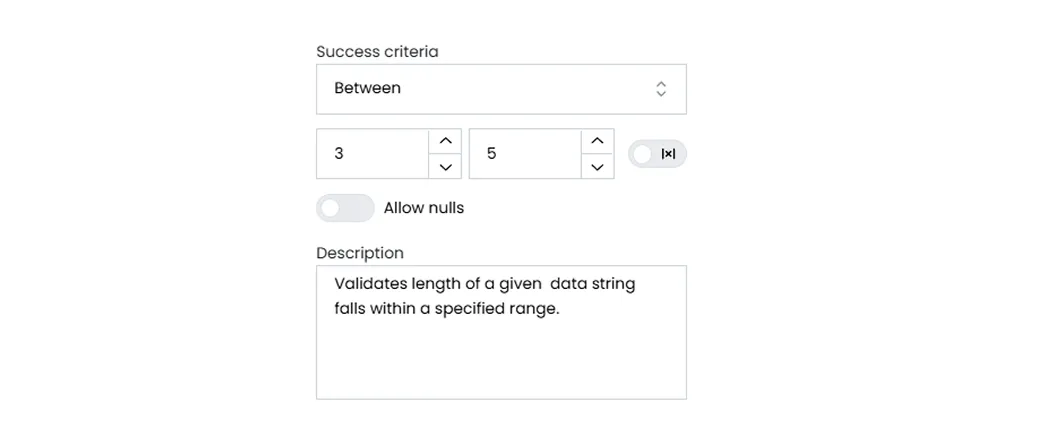

Success Criteria Configuration

This section defines how the rule’s outcome is measured against expected thresholds.

Field Name	Description	Required	Options / Format
Operator	Comparison operation for the result count	Yes	GreaterThan, LessThan, EqualTo, Between
Threshold Value	Value for comparison (single value for most operators)	Conditional	Number
Threshold Min	Minimum value (for Between operator)	Conditional	Number
Threshold Max	Maximum value (for Between operator)	Conditional	Number
Is Percentage	Whether the threshold represents a percentage or count	No	true / false (default: false)
Allow Nulls	Should null values be treated as valid	No	true / false (default: false)
Check For Match	When false, validates for negation of the condition	No	true / false (default: true)

---

Sample Input Data

UserID	CountryCode	PhoneNumber
1	IN	9876543210
2	US	11234567890
3	UK	447890123456
4	IN	98765 43210
5	null	null

---

Sample Configurations

Example 1: Country Code Exact Length

Configuration Field	Value
Column	CountryCode
Exact Length	2
Operator	GreaterThan
Threshold Value	4
Is Percentage	false
Allow Nulls	false
Check For Match	true

Explanation:
Ensures that at least 4 country codes are exactly 2 characters long (e.g., “IN”, “US”).

---

Example 2: Phone Number Length Range

Configuration Field	Value
Column	PhoneNumber
Minimum Length	10
Maximum Length	15
Left Trim	true
Right Trim	true
Operator	GreaterThan
Threshold Value	4
Is Percentage	false
Allow Nulls	false
Check For Match	true

Explanation:
Validates that at least 4 phone numbers have lengths between 10 and 15 characters (after trimming), ensuring basic phone number formatting.

---

Sample Output

Column Name	Rule Name	Success Count	Failure Count	Null Count	Within Threshold
CountryCode	String Length Validation	4	0	1	Yes
PhoneNumber	String Length Validation	4	0	1	Yes

---
