Description
The Encrypt Column activity secures sensitive data by encrypting the values of one or more specified columns.
It supports both one-way hashing (e.g., SHA algorithms) for irreversible encryption and two-way encryption (e.g., symmetric encryption using passwords) for reversible use cases.
Use case: Protect user credentials or personally identifiable information (PII) before storing or sharing datasets.
| Type | Description |
|---|
| Data | A tabular dataset as input |
Output
| Type | Description |
|---|
| Data | Returns the dataset with encrypted columns |
Configuration Fields
| Field Name | Required | Description |
|---|
| Encryption type | Yes | Choose between one-way (irreversible hash) or two-way (reversible using password). |
| Algorithm | Conditional | Select algorithm for one-way encryption (e.g., SHA-256, SHA-1). Shown only for one-way. |
| Column names | Yes | One or more columns whose values will be encrypted. |
| Password | Conditional | Used for two-way encryption to encode and decode the values. |
| h1 | h2 | h3 |
|---|
| data1 | value1 | info1 |
| data2 | value2 | info2 |
| data3 | value3 | info3 |

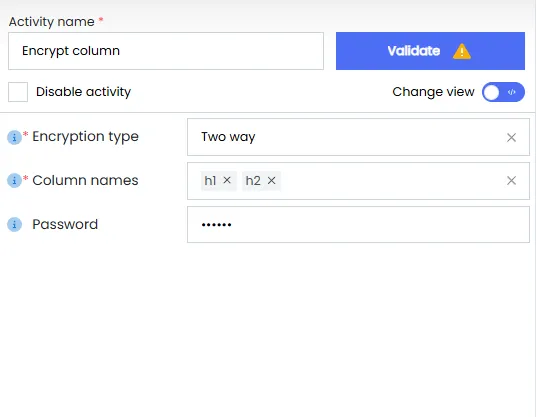

Sample Configuration
| Field | Value |
|---|
| Encryption type | Two-way |
| Column names | h1, h2 |
| Password | MySecret! |
Sample Output (Two-Way Encryption)
| h1 | h2 | h3 |
|---|
| 3b9d9b8d-6d93-4648-b33a-2c6f773789a7 | 9b1b5c9a-bc5e-4a99-b38d-d9c34cf7cfd6 | info1 |
| 33d3bff6-e469-46f7-9d7c-4bc12d5d59a1 | 7b77f40b-9375-479d-bdf7-dcc95f07b99c | info2 |
| b3c3e828-2cb7-4de9-bf1c-62aef6fffa97 | 6729f1d8-3781-4315-8fe1-8b042708f25e | info3 |
Sample Output (One-Way Encryption using SHA-1)
| h1 | h2 | h3 |
|---|
| 6d97a6b8b9899b0a59b6e85b993b22a8ac94608 | e59b4d1a83149cdad8379a35de8f4a4a853a4cc8 | info1 |
| f62b083e8f63d69a91e16f0db11b19589f2fcf1 | 548f56b831617f4f8df5e705b2b76e8d8c4b03b9 | info2 |
| f78c6d99b6e04d0c5397423fb4cd58f79f228d2 | 2d72c30ecedc493139de2bc57290ed40f763ada | info3 |
Use one-way encryption for passwords and sensitive values you don’t need to retrieve.
Use two-way encryption when data must be decrypted later for analysis or export.
