Execute Query
Description
The Execute Query activity allows users to execute SQL queries on files or data stored in a connected data source (e.g., database, storage, or file-based system).
This activity supports dynamic queries, and optionally allows saving the results to files with encryption, formatting, and custom output configuration.
Use this activity to:
- Execute ad hoc or parameterized SQL queries on uploaded or connected data
- Retrieve transformed or filtered data for further processing
- Generate reports or structured data files from query results
Use Case:
Useful in scenarios where data needs to be filtered, joined, aggregated, or reshaped before it’s used in reporting, validation, or export.
Input
| Type | Description |
|---|---|
| Files | Files/data available in the connection |
Output
| Type | Format | Description |
|---|---|---|
| Data / File | Table / File | Query result as a table or downloadable file |
Configuration Fields
| Field Name | Required | Description |
|---|---|---|
| Connection | Yes | Connection to the data source where the query should be executed. |
| Query | Yes | SQL query to be executed on the connected data source. |
| Save As File | No | If enabled, the query result will be saved as a file. |
| Secret Key | Conditional | Encryption key used to secure the generated output file (enabled only if Save As File is true). |
| File Pattern | Conditional | Pattern for naming the generated files. |
| Sheet Name | Conditional | Sheet name to use in the generated file (for Excel formats). |
| File | Conditional | Template file to structure the output. |
| Split by Column | Conditional | Column name used to split the query result into multiple output files. |
| Starting Row | Conditional | Row index in the template file from where data insertion begins. |
| Starting Column | Conditional | Column index in the template file from where data insertion begins. |
Sample Input
Not applicable — data is pulled from the connected data source.

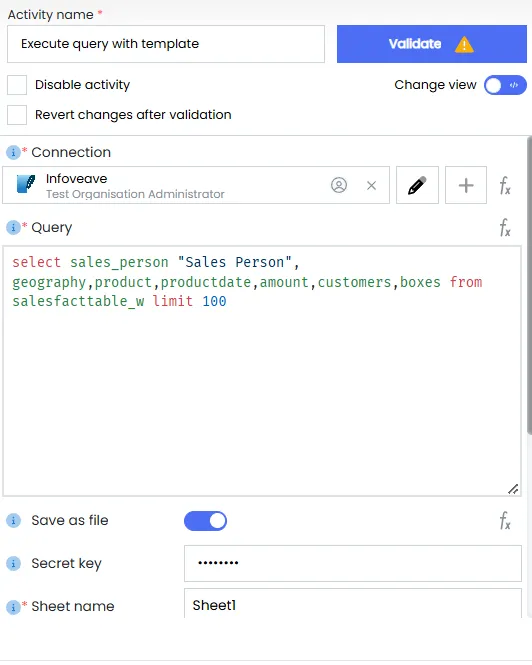

Sample Configuration
| Field | Value |
|---|---|
| Connection | AzureBlobConnection |
| Query | SELECT * FROM SalesData WHERE Region = 'East' |
| Save As File | true |
| Secret Key | Encrypt@123 |
| File Pattern | Sales_Report_[Region] |
| Sheet Name | EastRegionSales |
| Split by Column | Region |
| Starting Row | 2 |
| Starting Column | B |
Sample Output
| Customer | Product | Region | Amount |
|---|---|---|---|
| John | Laptop | East | 1200 |
| Alice | Printer | East | 400 |
If “Save As File” is enabled, this output will be saved in the specified file format.
