Execute API

Description

The Execute API Activity enables workflows to connect and communicate with any RESTful API by executing configurable HTTP requests such as GET, POST, PUT, or DELETE. It allows users to define the request structure including headers, query parameters, body content, pagination rules, response parsing, and authentication.

This activity is highly flexible and supports integration with third-party systems, custom backends, public APIs, and , all without requiring external tools.

Use case:
In a logistics automation workflow, use this activity to call a courier tracking API like https://api.courier.com/track to fetch live shipment updates. You can pass tracking numbers dynamically using Form Data, handle pagination, and export the results as JSON or CSV for audit purposes.

---

Input

Type	Required	Description
Data	Optional	Used when request parameters, body, or headers need to be constructed using values from previous activities (e.g., row-based input or iteration).

---

Output

Field	Required	Description
Data	Optional	Used when request parameters, body, or headers need to be dynamically constructed using values from previous activities (e.g., row-based input or iteration).

---

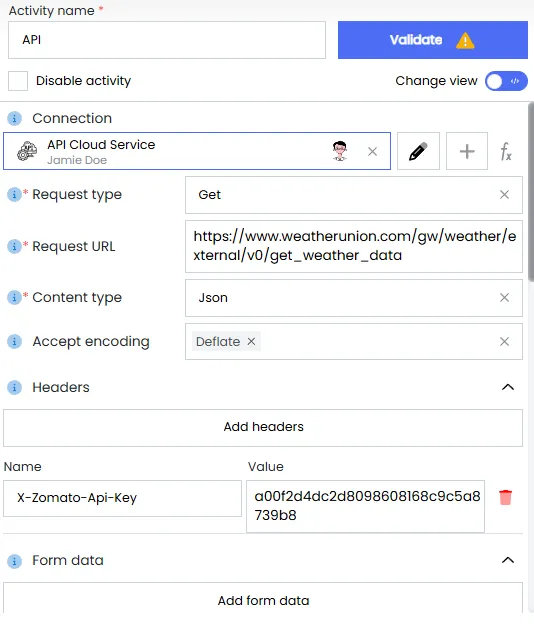

Configuration Fields

Field Name	Description
Connection	Authentication configuration for the API. Supports OAuth, Basic Auth, API Keys, etc.
Request Type	HTTP method used for the API call (e.g., GET, POST, PUT, DELETE).
Request URL	Full endpoint URL for the API call. Variables can be injected using replacers like {{args.param}}.
Content Type	MIME type of the request body (e.g., application/json, application/x-www-form-urlencoded, application/xml).
Headers	Custom HTTP headers as key-value pairs (e.g., Authorization, X-API-KEY, Accept).
Form Data	Used for submitting form-encoded data. Typically used with application/x-www-form-urlencoded.
URL Params	Key-value pairs appended as query parameters to the endpoint (e.g., ?status=active&page=1).
Parameters	Generic key-value inputs, optionally mapped to dynamic values from previous rows.
Body	Body of the request, in raw JSON/XML format. Required for POST/PUT operations.
Continue Execution on Failure	If enabled, the workflow continues even if the API request fails (useful for optional services or retries).
Replacer for All Rows	Enables replacing placeholders with input values from each row (useful for batch processing or iterations).
Next Page Key Path	JSON path to locate the next page token from the response for paginated APIs (e.g., data.pagination.next).
Next Page Key	Initial value of the pagination token (if available).
Next Page Key Behaviour	Determines where the next page key is used (URL, Params, or Header).
Include Headers in Response	If enabled, response headers are returned along with the data.
Read Next Page Key from Header	Enable to extract the pagination token directly from a response header.
Replace Next Page Key With	Specifies the placeholder in the URL or body to be replaced with the next page key (e.g., {{nextPageToken}}).
Search Key to Replace	Field key in the response body whose value should be replaced dynamically.
Root of Response	JSON path to the array/object that holds the main response content (e.g., results, data.items).
File Type	Desired export format from API response (e.g., CSV, JSON, XML).
JSON Field	Field inside the API response that holds the array to be exported.
Delay	Optional delay (in milliseconds) between paginated requests or retries.
Accept Encoding	Content encoding expected in the response (e.g., gzip, deflate).

---

Sample Input

Not applicable

---

Sample Configuration

Field	Value
connection.id	public-api-oauth
requestType	GET
requestUrl	https://api.example.com/customers
contentType	application/json
headers	{ "Authorization": "Bearer {{args.token}}" }
urlParams	{ "status": "active", "limit": 100 }
nextPageKeyPath	pagination.nextPageToken
replaceNextPageKeyWith	{{nextPageToken}}
nextPageKeyBehaviour	URL
rootOfResponse	data.customers
includeHeadersInResponse	true
fileType	JSON

---

Sample Output

Customer ID	Name	Email	Status
1001	John Smith	john.smith@example.com	Active
1002	Jane Doe	jane.doe@example.com	Active

If Include Headers in Response is enabled, the output will also include an _headers field containing all HTTP response headers.

---
