Description
The Extract Lat/Lon from Geo Point activity parses geographic coordinate values from a column containing geo point strings — typically in the format (latitude, longitude) — and separates them into two new columns: one for latitude and another for longitude.
Use case:
Useful when working with address datasets, location-tracked records, or mapping systems that store coordinates in a single field. This activity allows for easier geospatial filtering, distance calculations, or visualization on maps.
| Type | Description |
|---|
| Data | A dataset containing a GeoPoint column in the format (lat, lon) |
Output
| Type | Description |
|---|
| Transformed Data | Same dataset with additional Latitude and Longitude columns |
Configuration Fields
| Field Name | Required | Description |
|---|
| GeoPoint column | Yes | The name of the column containing the (latitude, longitude) string |
| Latitude column | Yes | The name of the column where latitude values will be stored |
| Longitude column | Yes | The name of the column where longitude values will be stored |
| ID | Location |
|---|
| 1 | (12.9716, 77.5946) |
| 2 | (40.7128, -74.0060) |
| 3 | (34.0522, -118.2437) |

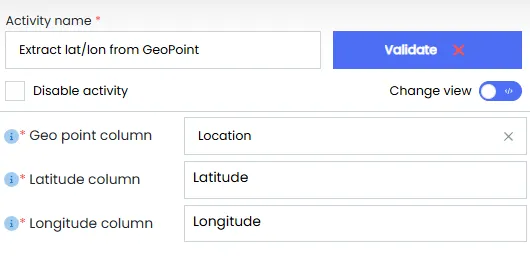

Sample Configuration
| Field | Value |
|---|
| GeoPoint column | Location |
| Latitude column | Latitude |
| Longitude column | Longitude |
Sample Output
| ID | Location | Latitude | Longitude |
|---|
| 1 | (12.9716, 77.5946) | 12.9716 | 77.5946 |
| 2 | (40.7128, -74.0060) | 40.7128 | -74.0060 |
| 3 | (34.0522, -118.2437) | 34.0522 | -118.2437 |
