Process Flow Chart

The Process Flow is an advanced visualization component that displays processes as a series of connected nodes, with directional edges showing the flow between steps. It automatically calculates and displays process durations, path frequencies, and can handle complex branching workflows.

This component is particularly useful for visualizing business processes, customer journeys, system workflows, or any sequence of connected events where understanding timing and path frequency is important.

Key features:

• Customizable node appearance with value and duration displays
• Multiple edge/connection types (straight, bezier, stepped)
• Interactive zoom and pan capabilities
• Built-in duration calculations with customizable units
• Process frequency tracking (counts between nodes)

Use cases:

• Customer journey mapping through conversion funnels
• Business process workflow visualization
• System architecture and data flow diagrams
• Manufacturing process tracking
• Incident response workflow analysis

Note

• Use a Process Flow when you need to visualize sequences of steps with timing metrics and understand branching paths in a process.
• Example: Visualize a customer support ticket workflow showing average time spent at each status and common paths tickets take to resolution.

---

⚙️ Setup

1. Drag the Process Flow widget from the chart library onto your designer workspace.
2. Select the chart.
3. Go to the Widget Configuration tab in the Configuration panel.
4. Under the Configuration panel tab, select the Basic Configuration option.
5. Select the Source for the data.
6. Map the required fields:
   • Value - Primary measure to display in nodes
   • StartDate - Beginning timestamp of each process step
   • EndDate - Completion timestamp of each process step
   • Group - Process step/node identifier
   • UniqueKey - Identifier for individual process instances
7. Optionally add a Date field for time-based filtering.
8. Enable Hide Zero Values to omit symbols with zero values if needed.

---

📊 Basic Configuration

Configuration Item	Description
Source	Data source providing the process flow records.
Value	Primary numerical measure displayed within each node.
StartDate	Required timestamp dimension marking when each process step began.
EndDate	Required timestamp dimension marking when each process step completed.
Group	Required categorical field identifying each process step (node).
UniqueKey	Required field providing unique identifiers for process instances.
Date Field (optional)	Optional temporal dimension for time-based filtering.

Note

• The Group field must contain “Start” and “End” values to anchor the process flow.
• Duration between steps is automatically calculated from StartDate and EndDate.

---

🎨 Chart Customizations

Category	Options & Description
General	Modify the chart’s general appearance, including the background color, borders, shadows, and drill-out choices.
Title	Enable and customize chart title text, alignment, font, and color.
Node	Adjust node dimensions (width/height), appearance (background color/gradient, borders, radius), label formatting, value display options, and connection point styling.
Link	Select from 7 connection types (Straight/Bezier/Stepped etc.), customize line color/thickness/animation, arrowhead markers (type/size/color), and transition count labels.
Layout	Set flow direction (vertical/horizontal), choose layout algorithm (Longest-Path/Network-Simplex), adjust spacing (node/edge/rank gaps), and configure background grid patterns.
Controls	Manage control panel visibility and position (top/bottom + left/center/right), toggle zoom/fit-to-view/interactive functions.
Tooltip	Customize hover tooltips displaying step details, connection frequencies, and duration metrics with formatting options.

---

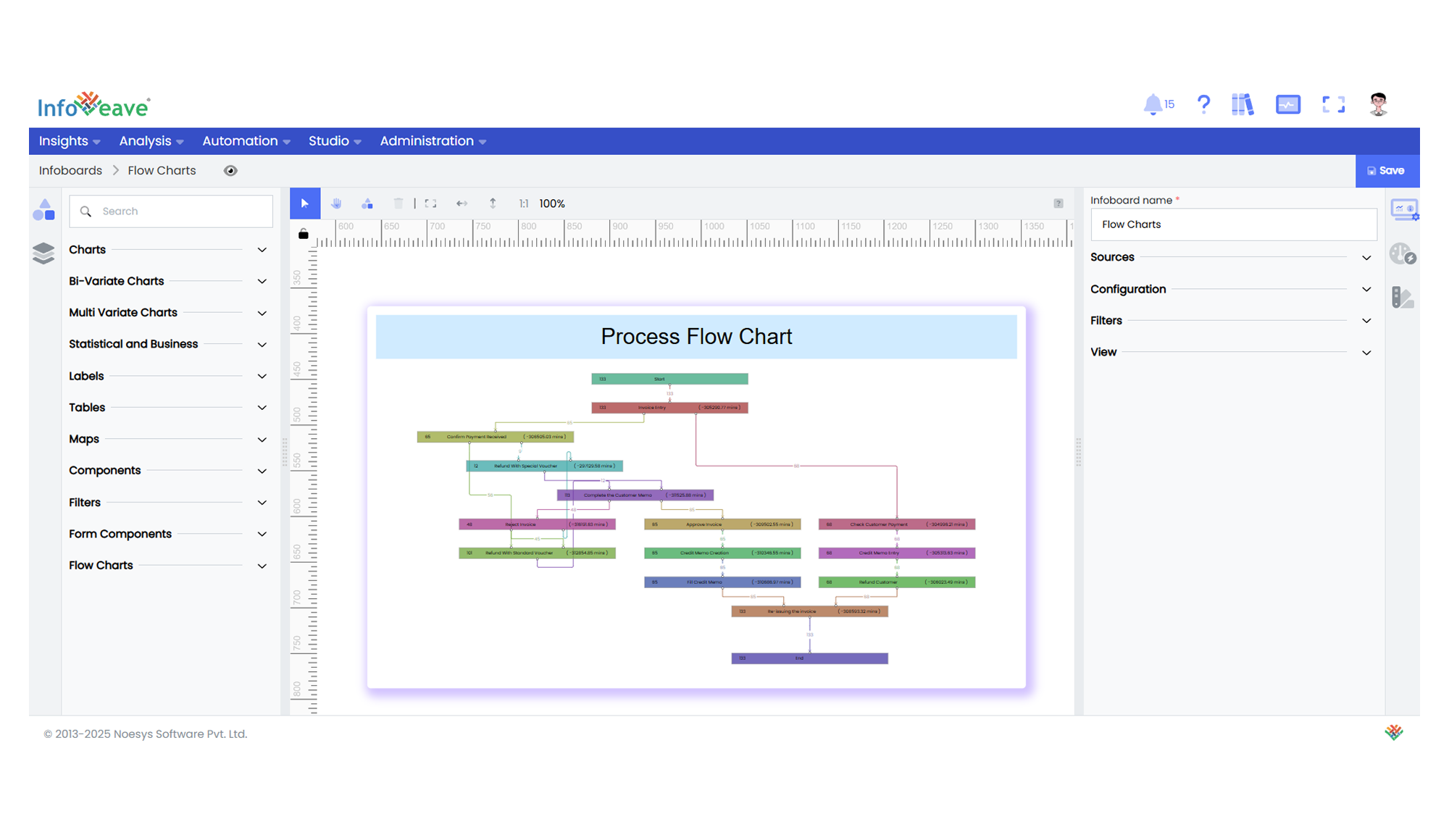

📊 Example Visualization
