MultiVariate Pie Chart

The MultiVariate Pie Chart enables side-by-side comparison of multiple pie charts, each representing the distribution of values for a particular dimension. Useful when you need to visually compare categorical distributions for multiple categories or segments simultaneously.

Key Features:

• Supports up to 10 categorical dimensions, each represented by an individual pie chart.
• Configurable grid layout: number of rows, columns, gaps, and positioning.
• Customizable label formatting, position, orientation, and visibility.
• Option for rose charts (area or radius mode).
• Full control over radius, rotation, and inner radius (for donut style).
• Optional per-series custom color and box shadow effects.

Use Cases:

• Comparing category distributions across different segments.
• Multi-panel categorical breakdowns for marketing, survey, or demographic data.
• Visually identifying distribution patterns and outliers.

Note

Ideal when you want multiple pies on a single view to spot distribution trends.

---

⚙️ Setup

1. Add a MultiVariate Pie Chart widget from the chart library onto your designer workspace.
2. Select the chart.
3. Go to the Widget Configuration tab in the Customize panel.
4. Under the Configuration tab, select the Basic Configuration option to access the essential settings for the multi variate pie chart.
5. Select the Source which the chart will pull the data from the option.
6. Map:
   • Measure — Numeric value to define slice size.
   • Dimension — One or more categorical dimensions for individual pie charts.
7. Configure grid layout, pie properties, labels, rose type, and tooltips.

---

📊 Basic Configuration

Configuration Item	Description
Source	Source providing the data for measures and dimensions.
Measure	Numeric value to size pie slices.
Dimension	Categorical field(s) for individual pie charts.

---

🎨 Chart Customizations

Category	Options & Description
General	Modify the chart’s general appearance, including the background color, borders, shadows, and drill-out choices.
Title	Enable and customize chart title text, alignment, font, and color.
Sorting	Define custom sort orders for categories along the X and Y axes.
Position	Horizontal and vertical alignment.
Grid	Adjust chart margins, grid spacing, and padding around the matrix area.
Legend	Toggle visibility, position, orientation, and customize legend labels and icons.
Series	Labels, label overlap behavior, label positioning, rotation, per-slice custom colors, and shadow effects.
Tooltip	Tooltip format and content.
Tooltip	Control tooltip content, formatting, and visibility on hover.

---

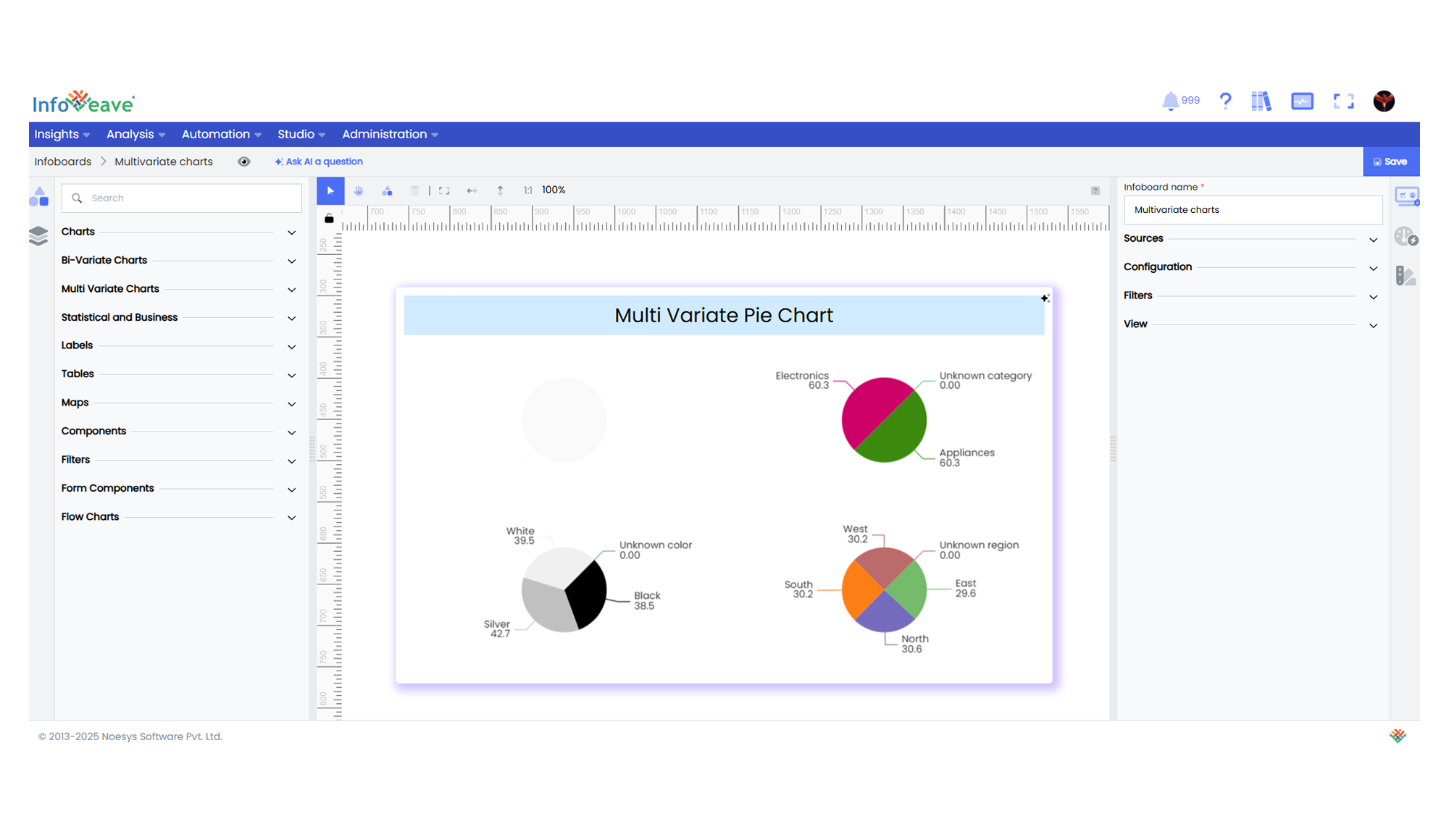

📊 Example Visualization
