BiVariate Bubble Line Chart

A BiVariate Bubble Line Chart combines a scatter plot with bubble sizing and connected lines to visualize trends across categories and value pairs.
Supports splitting data across multiple grids using a Split dimension and optionally grouping series using a Group dimension.

Key Features:

• Multi-grid (small multiples) layout based on a Split dimension.
• Optional Group dimension for multiple bubble line series per grid.
• Configurable bubble sizes based on a Size measure or default Value.
• Flexible Horizontal and Vertical orientation.
• DataZoom controls for both axes.
• Custom legends, tooltips, axis styles, heatmaps, and series customization.
• Interactive drill-down on bubble click events.

Use Cases:

• Sales vs. Profit trends across product lines.
• Time-series readings with bubble size as volume.
• Performance trends split by categories like regions or devices.
• Multi-line scatter trends for different demographic segments.

Note

Use this when you need to visualize both data trends (lines) and relative magnitudes (bubble size) over two variables and compare them across split categories.

---

⚙️ Setup

1. Add the BiVariate Bubble Line Chart widget to your Infoboard.widget from the chart library onto your designer workspace.
2. Select the chart.
3. Go to the Widget Configuration tab in the Customize panel.
4. Under the Configuration tab, select the Basic Configuration option to access the essential settings for the bi variate bubble line chart.
5. Select the Source which the chart will pull the data from the option.
6. Map:
   • Value (Measure) — The primary numeric value for bubble positions.
   • Size (Measure) (optional) — A numeric measure that controls bubble size.
   • Axis (Dimension) — The independent axis (categories, values, etc.).
   • Split (Dimension) — The dimension to split the visualization into grids.
   • (Optional) Group (Dimension) — To show multiple series in each grid.
7. Optionally add a Date field for time-based filtering.
8. Enable Hide Zero Values to omit symbols with zero values if needed.

---

📊 Basic Configuration

Configuration Item	Description
Source	Source providing the data for measures and dimensions.
Value	Primary numeric measure for bubble position (X or Y axis).
Size	(Optional) Numeric measure determining bubble size.
Axis	Dimension for independent axis labels.
Split	Splits data into multiple chart grids.
Group (optional)	Groups multiple bubble series within a grid.

---

🎨 Chart Customizations

Category	Options & Description
General	Modify the chart’s general appearance, including the background color, borders, shadows, and drill-out choices.
Title	Enable and customize chart title text, alignment, font, and color.
Sorting	Define custom sort orders for categories along the X and Y axes.
Grid	Adjust chart margins, grid spacing, and padding around the matrix area.
Legend	Toggle visibility, position, orientation, and customize legend labels and icons.
HeatMap	Configure a visual color map to represent value intensity with a gradient.
Categorical Axis (X, Y)	Customize axis labels, intervals, rotation, visibility, and range sliders for both axes.
Numerical Axis	Value axis type, log scale, min/max ranges.
Series	Bubble line color, symbol shape, line type, symbol size mapping.
Tooltip	Tooltip display and formatting.
Others	Bubble Min/Max sizes, chart orientation.

---

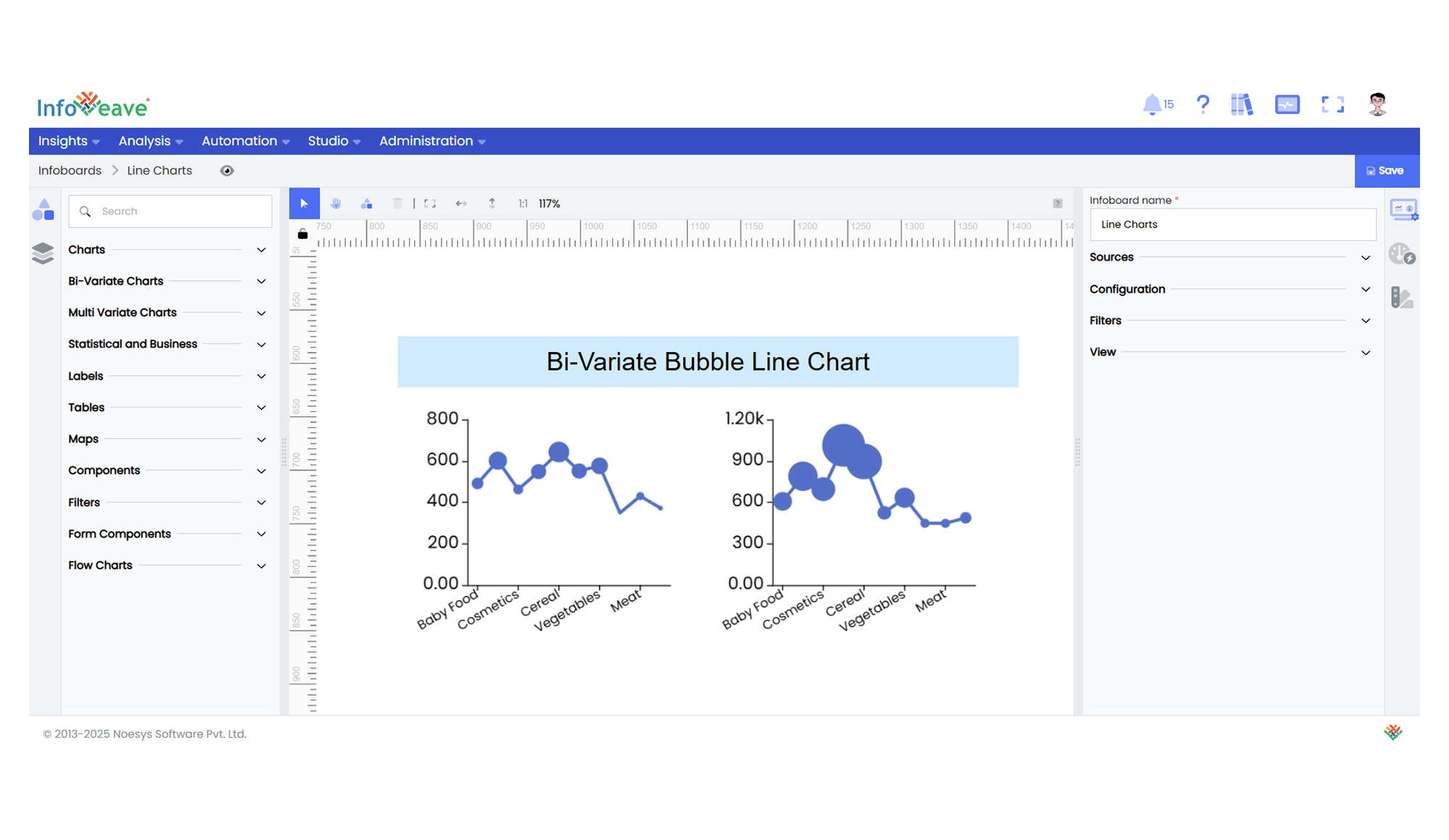

📊 Example Visualization
