Segment Widget

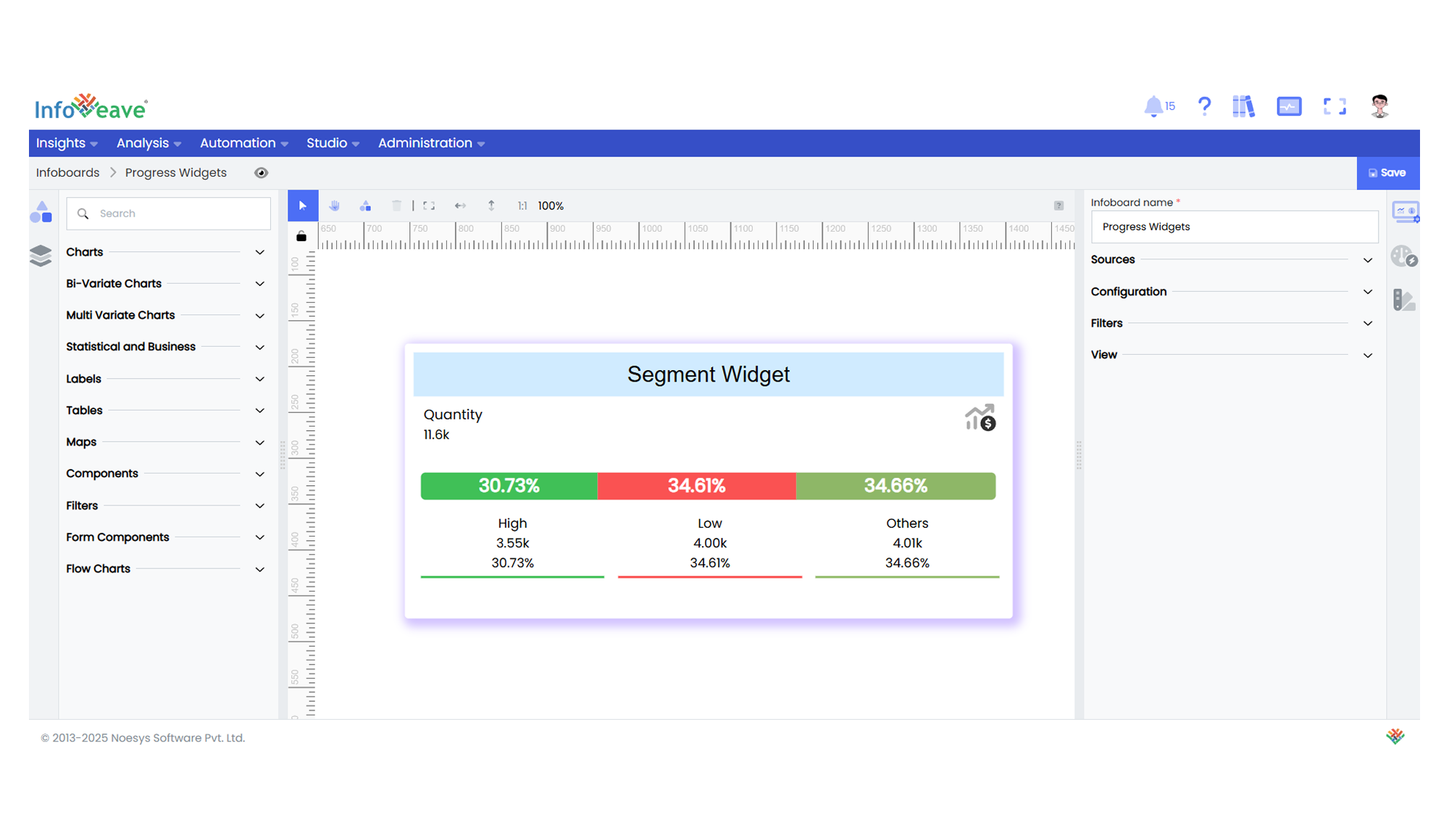

A segment widget is a type of chart visualization that displays the distribution of a particular measure across various dimension values (categories). The chart provides clear and concise information on how each segment contributes to overall performance. The segment widget features a horizontal bar divided into multiple sections based on the selected dimension. The length or size of each segment corresponds to the value of the measure it represents, allowing for quick comparison.

Within each segment, the widget displays the value of the chosen measure, such as profit or sales, as both a percentage of the total and the actual numerical value, providing dual insight into the data.Additional information, such as category names and specific data points, is displayed through tooltips.

Basic Configuration

Add and configure the segment chart in Infoveave with the simple drag-and-drop option. Select the Datasource, the associated measure and the dimensions required. Below are the simple steps on how to configure a segment chart in Infoveave.

1. Drag the segment chart type and drop it onto the designer workspace, from the chart library.
2. Click on the segment chart in the designer to select it.
3. With the segment chart selected, go to the Configuration tab located in the Configuration panel.
4. Under the Configuration tab, select the Basic Configuration option to access the essential settings for the segment chart.
5. Select the Datasource from Source which the chart will pull the data from the option.
6. Choose the Measure(s) that represents the measure values you want to display on the segment chart.
7. Choose the Dimension that represents the dimension values you want to display on the segment chart.
8. Use the Date (optional) to include a date dimension in your chart, useful for showing trends over time.
9. Enable Hide Zero Values option (optional) to hide zero values.

Chart Customization

Customizing the segment chart allows you to tailor the widget appearance to meet your theme. With improved customization you can enhance the clarity on the data points, the chart aesthetics and set interactivity filters making your dashboard visually appealing also effectively communicating your data insights.

The basic customizations available for the segment chart are as below

• General Modify the chart’s general appearance, including the background color, borders, shadows, and drill-out choices.
• Title Enable and customize the chart title’s text, font, color, and alignment.
• Segment Series Customize the dimension values and option in the segment chart.
• Segment Options Additional options for customizing the segment label, value, icon, and progress bar.
